CHAPTER 3
FORWARD KINEMATICS

The problem of manipulator kinematics is to describe the motion of a manipulator without consideration of the forces and torques causing the motion. The kinematic description is therefore a geometric one. In this chapter we consider the forward kinematics problem for serial link manipulators, which is to determine the position and orientation of the end effector given the values for the joint variables of the robot. This problem is easily solved by attaching coordinate frames to each link of the robot and expressing the relationships among these frames as homogeneous transformations. We use a systematic procedure, known as the Denavit–Hartenberg convention, to attach these coordinate frames to the robot. The position and orientation of the robot end effector is then reduced to a matrix multiplication of homogeneous transformations. We give examples of this procedure for several of the standard configurations that we introduced in Chapter 1.

In subsequent chapters we will consider the problems of velocity kinematics and inverse kinematics. The former problem is to determine the relation between the end-effector velocity and the joint velocities whereas the inverse kinematics problem is to determine the joint variables given the end-effector position and orientation.

3.1 Kinematic Chains

As described in Chapter 1, a robot manipulator is composed of a set of links connected together by joints. The joints can either be very simple, such as a revolute joint or a prismatic joint, or they can be more complex, such as a ball and socket joint (recall that a revolute joint is like a hinge that allows a relative rotation about a single axis, and a prismatic joint permits a linear motion along a single axis, namely an extension or retraction). The difference between the two situations is that in the first instance the joint has only a single degree-of-freedom of motion: the angle of rotation in the case of a revolute joint, and the amount of linear displacement in the case of a prismatic joint. In contrast, a ball and socket joint has two degrees of freedom. In this book it is assumed throughout that all joints have only a single degree of freedom. This assumption does not involve any real loss of generality, since joints such as a ball and socket joint (two degrees of freedom) or a spherical wrist (three degrees of freedom) can always be thought of as a succession of single degree-of-freedom joints with links of length zero in between.

With the assumption that each joint has a single degree-of-freedom, the action of each joint can be described by a single real number: the angle of rotation in the case of a revolute joint or the displacement in the case of a prismatic joint.

A robot manipulator with n joints will have n + 1 links, since each joint connects two links. We number the joints from 1 to n, and we number the links from 0 to n, starting from the base. By this convention, joint i connects link i − 1 to link i. We will consider the location of joint i to be fixed with respect to link i − 1. When joint i is actuated, link i moves. Therefore, link 0 (the first link or base) is fixed, and does not move when the joints are actuated. Of course, the robot manipulator could itself be mobile (e.g., it could be mounted on a mobile platform or on an autonomous vehicle), but we will not consider this case in the present chapter, since it can be handled easily by slightly extending the techniques presented here.

With the i^th joint, we associate a joint variable, denoted by q_i. In the case of a revolute joint, q_i is the angle of rotation, and in the case of a prismatic joint, q_i is the joint displacement:

(3.1)

To perform the kinematic analysis, we attach a coordinate frame rigidly to each link. In particular, we attach o_ix_iy_iz_i to link i. This means that, whatever motion the robot executes, the coordinates of each point on link i are constant when expressed in the i^th coordinate frame. Furthermore, when joint i is actuated, link i and its attached frame, o_ix_iy_iz_i, experience a resulting motion. The frame o₀x₀y₀z₀, which is attached to the robot base, is referred to as the base frame, inertial frame or world frame. Figure 3.1 illustrates the idea of attaching frames rigidly to links in the case of an elbow manipulator.

**Figure 3.1** Coordinate frames attached to elbow manipulator.

Now, suppose A_i is the homogeneous transformation matrix that gives the position and orientation of o_ix_iy_iz_i with respect to o_{i − 1}x_{i − 1}y_{i − 1}z_{i − 1}. The matrix A_i is not constant, but varies as the configuration of the robot is changed. However, the assumption that all joints are either revolute or prismatic means that A_i is a function of only a single joint variable, namely q_i. In other words,

(3.2)

The homogeneous transformation matrix that expresses the position and orientation of o_jx_jy_jz_j with respect to o_ix_iy_iz_i is called a transformation matrix, and is denoted by . From Chapter 2 we see that

(3.3)

By the manner in which we have rigidly attached the various frames to the corresponding links, it follows that the position of any point on the end effector when expressed in the last frame n is a constant independent of the configuration of the robot. We denote the position and orientation of the end effector with respect to the inertial or base frame by a three-vector (which gives the coordinates of the origin of the end-effector frame with respect to the base frame) and the 3 × 3 rotation matrix , and define the homogeneous transformation matrix

(3.4)

Then the position and orientation of the end effector in the inertial frame are given by the product

(3.5)

Each homogeneous transformation A_i is of the form

(3.6)

Hence, for i < j

(3.7)

The matrix expresses the orientation of o_jx_jy_jz_j relative to o_ix_iy_iz_i and is given by the rotational parts of the A matrices as

(3.8)

The coordinate vectors are given recursively by the formula

(3.9)

These expressions will be useful in Chapter 4 when we study Jacobian matrices.

In principle, that is all there is to forward kinematics; determine the functions A_i(q_i), and multiply them together as needed. However, it is possible to achieve a considerable amount of streamlining and simplification by introducing further conventions, such as the Denavit–Hartenberg representation of a joint, and this is the objective of the next section.

3.2 The Denavit–Hartenberg Convention

In this section we develop a set of conventions that provide a systematic procedure for computing the forward kinematic equations. It is, of course, possible to carry out forward kinematics analysis even without respecting these conventions, as we did for the two-link planar manipulator example in Chapter 1. However, the kinematic analysis of an n-link manipulator can be extremely complex and the conventions introduced below simplify the analysis considerably. Moreover, they give rise to a universal language with which engineers can communicate.

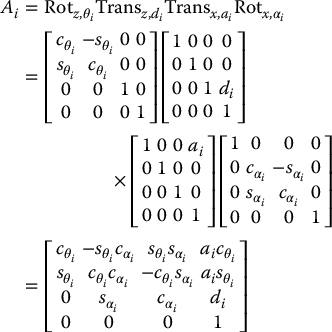

A commonly used convention for selecting frames of reference in robotic applications is the Denavit–Hartenberg, or DH convention. In this convention, each homogeneous transformation A_i is represented as a product of four basic transformations

(3.10)

where the four quantities θ_i, a_i, d_i, α_i are parameters associated with link i and joint i. The four parameters a_i, α_i, d_i, and θ_i in Equation (3.10) are generally given the names link length, link twist, link offset, and joint angle, respectively. These names derive from specific aspects of the geometric relationship between two coordinate frames, as will become apparent below. Since the matrix A_i is a function of a single variable, three of the above four quantities are constant for a given link, while the fourth parameter, θ_i for a revolute joint and d_i for a prismatic joint, is the joint variable.

From Chapter 2 one can see that an arbitrary homogeneous transformation matrix can be characterized by six numbers, for example, three numbers to specify the fourth column of the matrix and three Euler angles to specify the upper left 3 × 3 rotation matrix. In the DH representation, in contrast, there are only four parameters. How is this possible? The answer is that, while frame i is required to be rigidly attached to link i, we have considerable freedom in choosing the origin and the coordinate axes of the frame. For example, it is not necessary that the origin of frame i be placed at the physical end of link i. In fact, it is not even necessary that frame i be placed within the physical link. Frame i could lie in free space so long as frame i is rigidly attached to link i. By a clever choice of the origin and the coordinate axes, it is possible to cut down the number of parameters needed from six to four (or even fewer in some cases). In Section 3.2.1 we will show why, and under what conditions, this can be done, and in Section 3.2.2 we will show exactly how to make the coordinate frame assignments.

3.2.1 Existence and Uniqueness

Clearly it is not possible to represent any arbitrary homogeneous transformation using only four parameters. Therefore, we begin by determining just which homogeneous transformations can be expressed in the form given by Equation (3.10). Suppose we are given two frames, denoted by frames 0 and 1, respectively. Then there exists a unique homogeneous transformation matrix A that takes the coordinates from frame 1 into those of frame 0. Now, suppose the two frames have the following two additional features:

(DH1) The axis x₁ is perpendicular to the axis z₀.
(DH2) The axis x₁ intersects the axis z₀.

These two properties are illustrated in Figure 3.2. Under these conditions, we claim that there exist unique numbers a, d, θ, α such that

The 3D rotation matrices illustrate how coordinate frames are satisfying assumptions DH1 and DH2. — **Figure 3.2** Coordinate frames satisfying assumptions DH1 and DH2.

(3.11)

Of course, since θ and α are angles, we really mean that they are unique to within a multiple of 2π. To show that the matrix A can be written in this form, write A as

(3.12)

If (DH1) is satisfied, then x₁ is perpendicular to z₀ and we have x₁ · z₀ = 0. Expressing this constraint with respect to o₀x₀y₀z₀, using the fact that the first column of is the representation of the unit vector x₁ with respect to frame 0, we obtain

Since r₃₁ = 0, we now need only show that there exist unique angles θ and α such that

(3.13)

The only information we have is that r₃₁ = 0, but this is enough. First, since each row and column of must have unit length, r₃₁ = 0 implies that

Hence, there exist unique θ and α such that

So far, we have shown that

Again, using the fact that is a rotation matrix, we must have

Since these equations must hold for all values of θ, in particular for θ = 0, π, we must also have

Putting these expressions together, we can write these variables as

which are satisfied by taking r₁₂, r₁₃, r₂₂, and r₂₃ as in Equation (3.13).

Next, assumption (DH2) means that the displacement between and can be expressed as a linear combination of the vectors z₀ and x₁. This can be written as . Again, we can express this relationship in the coordinates of o₀x₀y₀z₀, and we obtain

Combining the above results, we obtain Equation (3.10) as claimed. Thus, we see that four parameters are sufficient to specify any homogeneous transformation that satisfies the constraints (DH1) and (DH2).

Now that we have established that each homogeneous transformation matrix satisfying conditions (DH1) and (DH2) above can be expressed as in Equation (3.10), we can give a physical interpretation to each of these four quantities. The parameter a is the distance between the axes z₀ and z₁, and is measured along the axis x₁. The angle α is the angle between the axes z₀ and z₁, measured in a plane normal to x₁. The positive sense for α is determined from z₀ to z₁ by the right hand rule as shown in Figure 3.3. The parameter d is the distance from the origin to the intersection of the x₁ axis with z₀ measured along the z₀ axis. Finally, θ is the angle from x₀ to x₁ measured in a plane normal to z₀. These physical interpretations will prove useful in developing a procedure for assigning coordinate frames that satisfy the constraints (DH1) and (DH2), and we now turn our attention to developing such a procedure.

Two different 3D rotation matrices illustrate positive sense for alpha subscript i and theta subscript i. — **Figure 3.3** Positive sense for α_i and θ_i.

3.2.2 Assigning the Coordinate Frames

For a given robot manipulator, one can always choose the frames 0, …, n in such a way that the above two conditions are satisfied. In certain circumstances, this will require placing the origin of frame i in a location that may not be intuitively satisfying, but typically this will not be the case. In reading the material below, it is important to keep in mind that the choices of the various coordinate frames are not unique, even when constrained by the requirements above. Thus, it is possible that different engineers will derive differing, but equally correct, coordinate frame assignments for the links of the robot. It is very important to note, however, that the end result (i.e., the matrix ) will be the same, regardless of the assignment of intermediate DH frames (assuming that the coordinate frames for links 0 and n coincide). We begin by deriving the general procedure. We then discuss various common special cases for which it is possible to further simplify the homogeneous transformation matrix.

To start, note that the choice of z_i is arbitrary. In particular, from Equation (3.13), we see that by choosing α_i and θ_i appropriately, we can obtain any arbitrary direction for z_i. Thus, for our first step, we assign the axes z₀, …, z_{n − 1} in an intuitively pleasing fashion. Specifically, we assign z_i to be the axis of actuation for joint i + 1. Thus, z₀ is the axis of actuation for joint 1, z₁ is the axis of actuation for joint 2, etc. There are two cases to consider: (i) if joint i + 1 is revolute, z_i is the axis of revolution of joint i + 1; (ii) if joint i + 1 is prismatic, z_i is the axis of translation of joint i + 1. At first it may seem a bit confusing to associate z_i with joint i + 1, but recall that this satisfies the convention that we established above, namely that when joint i is actuated, link i and its attached frame, o_ix_iy_iz_i, experience a resulting motion.

Once we have established the z-axes for the links, we establish the base frame. The choice of a base frame is nearly arbitrary. We may choose the origin of the base frame to be any point on z₀. We then choose x₀, y₀ in any convenient manner so long as the resulting frame is right-handed. This sets up frame 0.

Once frame 0 has been established, we begin an iterative process in which we define frame i using frame i − 1, beginning with frame 1. Figure 3.4 will be useful for understanding the process that we now describe.

A free body diagram shows the Denavit-Hartenberg frame assignment. — **Figure 3.4** Denavit–Hartenberg frame assignment.

In order to set up frame i it is convenient to consider three cases: (i) the axes z_{i − 1}, z_i are not coplanar, (ii) the axes z_{i − 1}, z_i intersect, (iii) the axes z_{i − 1}, z_i are parallel. Note that in both cases (ii) and (iii) the axes z_{i − 1} and z_i are coplanar. This situation is in fact quite common, as we will see in Section 3.3. We now consider each of these three cases.

(i) z_{i − 1} and z_i are not coplanar: If z_{i − 1} and z_i are not coplanar, then there exists a unique shortest line segment from z_{i − 1} to z_i, perpendicular to both z_{i − 1} to z_i. This line segment defines x_i, and the point where it intersects z_i is the origin . By construction, both conditions (DH1) and (DH2) are satisfied and the vector from to is a linear combination of z_{i − 1} and x_i. The specification of frame i is completed by choosing the axis y_i to form a right-handed frame. Since assumptions (DH1) and (DH2) are satisfied, the homogeneous transformation matrix A_i is of the form given in Equation (3.10).

(ii) z_{i − 1} is parallel to z_i: If the axes z_{i − 1} and z_i are parallel, then there are infinitely many common normals between them and condition (DH1) does not specify x_i completely. In this case we are free to choose the origin at any convenient point on the z_i-axis. The axis x_i is then chosen either to be directed from toward z_{i − 1}, along the common normal, or as the opposite of this vector. A common method for choosing is to choose the normal that passes through as the x_i axis; is then the point at which this normal intersects z_i. In this case, d_i would be equal to zero. Once x_i is fixed, y_i is determined, as usual by the right hand rule. Since the axes z_{i − 1} and z_i are parallel, α_i will be zero in this case.

(iii) z_{i − 1} intersects z_i: In this case x_i is chosen normal to the plane formed by z_i and z_{i − 1}. The positive direction of x_i is arbitrary. Then we choose the origin at the point of intersection of z_i and z_{i − 1}. Note that in this case the parameter a_i will be zero.

This constructive procedure works for frames 0, …, n − 1 in an n-link robot. To complete the construction it is necessary to specify frame n. The final coordinate system o_nx_ny_nz_n is commonly referred to as the end effector or tool frame (see Figure 3.5). The origin is most often placed symmetrically between the fingers of the gripper. The unit vectors along the x_n, y_n, and z_n axes are labeled as n, s, and a, respectively. The terminology arises from the fact that the direction a is the approach direction, in the sense that the gripper typically approaches an object along the a direction. Similarly the s direction is the sliding direction, the direction along which the fingers of the gripper slide to open and close, and n is the direction normal to the plane formed by a and s.

The diagram shows the tool frame assignment. — **Figure 3.5** Tool frame assignment.

In most contemporary robots the final joint motion is a rotation of the end effector by θ_n and the final two joint axes, z_{n − 1} and z_n, coincide. In this case, the transformation between the final two coordinate frames is a translation along z_{n − 1} by a distance d_n followed (or preceded) by a rotation of θ_n about z_{n − 1}. This is an important observation that will simplify the computation of the inverse kinematics in the next section.

Finally, note the following important fact. In all cases, whether the joint in question is revolute or prismatic, the quantities a_i and α_i are always constant for all i and are characteristic of the manipulator. If joint i is prismatic, then θ_i is also a constant, while d_i is the i^th joint variable. Similarly, if joint i is revolute, then d_i is constant and θ_i is the i^th joint variable.

Summary of the DH Procedure

We may summarize the procedure based on the DH convention in the following algorithm for deriving the forward kinematics for any manipulator.

Step l: Locate and label the joint axes z₀, …, z_{n − 1}.
Step 2: Establish the base frame. Set the origin anywhere on the z₀-axis. The x₀ and y₀ axes are chosen conveniently to form a right-handed frame.
For i = 1, …, n − 1 perform Steps 3 to 5.
Step 3: Locate the origin where the common normal to z_i and z_{i − 1} intersects z_i. If z_i intersects z_{i − 1} locate at this intersection. If z_i and z_{i − 1} are parallel, locate in any convenient position along z_i.
Step 4: Establish x_i along the common normal between z_{i − 1} and z_i through , or in the direction normal to the z_{i − 1} − z_i plane if z_{i − 1} and z_i intersect.
Step 5: Establish y_i to complete a right-handed frame.
Step 6: Establish the end-effector frame o_nx_ny_nz_n. Assuming the n^th joint is revolute, set z_n = a parallel to z_{n − 1}. Establish the origin conveniently along z_n, preferably at the center of the gripper or at the tip of any tool that the manipulator may be carrying. Set y_n = s in the direction of the gripper closure and set x_n = n as s × a. If the tool is not a simple gripper set x_n and y_n conveniently to form a right-handed frame.
Step 7: Create a table of DH parameters a_i, d_i, α_i, θ_i.
- a_i = distance along x_i from the intersection of the x_i and z_{i − 1} axes to .
- d_i = distance along z_{i − 1} from to the intersection of the x_i and z_{i − 1} axes. If joint i is prismatic, d_i is variable.
- α_i = the angle from z_{i − 1} to z_i measured about x_i.
- θ_i = the angle from x_{i − 1} to x_i measured about z_{i − 1}. If joint i is revolute, θ_i is variable.
Step 8: Form the homogeneous transformation matrices A_i by substituting the above parameters into Equation (3.10).
Step 9: Form . This then gives the position and orientation of the tool frame expressed in base coordinates.

3.3 Examples

In the DH convention the only variable angle is θ, so we simplify notation by writing c_i for cos θ_i, etc. We also denote θ₁ + θ₂ by θ₁₂, and cos (θ₁ + θ₂) by c₁₂, and so on. In the following examples it is important to remember that the DH convention, while systematic, still allows considerable freedom in the choice of some of the manipulator parameters. This is particularly true in the case of parallel joint axes or when prismatic joints are involved.

3.3.1 Planar Elbow Manipulator

Consider the two-link planar arm of Figure 3.6. The joint axes z₀ and z₁ are normal to the page. We establish the base frame o₀x₀y₀z₀ as shown by choosing the origin at the point of intersection of the z₀ axis with the page and choosing the x₀ axis in the horizontal direction. Note that the direction of the x₀ is arbitrary. Once the base frame is established, the o₁x₁y₁z₁ frame is fixed as shown by the DH convention, where the origin has been located at the intersection of z₁ and the page. The final frame o₂x₂y₂z₂ is fixed by choosing the origin at the end of link 2 as shown. The DH parameters are shown in Table 3.1.

A free body diagram shows the two-link planar manipulator. — **Figure 3.6** Two-link planar manipulator. The z_{-axes all point out of the page, and are not shown in the figure.}

Table 3.1 DH parameters for 2-link planar manipulator. θ₁ and θ₂ are the joint variables.

Link	a_i	α_i	d_i	θ_i
1	a₁	0	0	θ₁
2	a₂	0	0	θ₂

The A matrices are determined from Equation (3.10) as

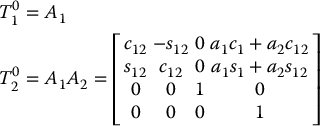

The T matrices are thus given by

Notice that the first two entries of the last column of are the x and y components of the origin in the base frame; that is,

are the coordinates of the end effector in the base frame. The rotational part of gives the orientation of the frame o₂x₂y₂z₂ relative to the base frame.

3.3.2 Three-Link Cylindrical Robot

Consider now the three-link cylindrical robot represented symbolically by Figure 3.7. We establish as shown at joint 1. Note that the placement of the origin along z₀ and the direction of the x₀ axis are arbitrary. Our choice of is the most natural, but could just as well be placed at joint 1. Next, since z₀ and z₁ coincide, the origin is chosen at joint 1 as shown. The x₁ axis is parallel to x₀ when θ₁ = 0 but, of course its direction will change since θ₁ is variable. Since z₂ and z₁ intersect, the origin is placed at this intersection. The direction of x₂ is chosen parallel to x₁ so that θ₂ is zero. Finally, the third frame is chosen at the end of link 3 as shown.

A free body diagram shows the three-link cylindrical manipulator. — **Figure 3.7** Three-link cylindrical manipulator.

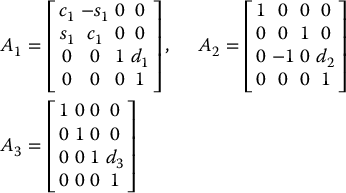

The DH parameters are shown in Table 3.2. The corresponding A and T matrices are

Table 3.2 DH parameters for 3-link cylindrical manipulator. θ₁, d₂, and d₃ are the joint variables.

Link	a_i	α_i	d_i	θ_i
1	0	0	d₁	θ₁
2	0	− 90	d₂	0
3	0	0	d₃	0

(3.14)

3.3.3 The Spherical Wrist

Figure 3.8 shows the spherical wrist, a three-link wrist mechanism for which the joint axes z₃, z₄, z₅ intersect at . The point is called the wrist center. The DH parameters are shown in Table 3.3. The Stanford Manipulator is an example of a manipulator that possesses a wrist of this type.

A free body diagram shows the spherical wrist frame assignment. — **Figure 3.8** The spherical wrist frame assignment.

Table 3.3 DH parameters for the spherical wrist.

Link	a_i	α_i	d_i	θ_i
4	0	− 90	0	θ₄
5	0	90	0	θ₅
6	0	0	d₆	θ₆

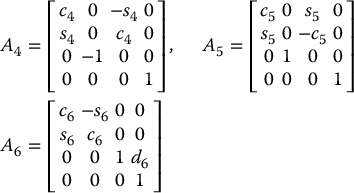

We show now that the final three joint variables, θ₄, θ₅, θ₆ are a set of Euler angles ϕ, θ, and ψ, with respect to the coordinate frame o₃x₃y₃z₃. To see this we need only compute the matrices A₄, A₅, and A₆ using Table 3.3 and Equation (3.10). This gives

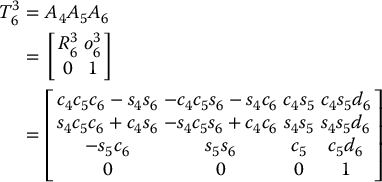

Multiplying these together yields

(3.15)

Comparing the rotational part of with the Euler angle transformation in Equation (2.27) shows that θ₄, θ₅, θ₆ can indeed be identified as the Euler angles ϕ, θ, and ψ with respect to the coordinate frame o₃x₃y₃z₃.

3.3.4 Cylindrical Manipulator with Spherical Wrist

Suppose that we now attach a spherical wrist to the cylindrical manipulator of Example 3.3.2 as shown in Figure 3.9. Note that the axis of rotation of joint 4 is parallel to z₂ and thus coincides with the axis z₃ of Example 3.3.2.) The implication of this is that we can immediately combine Equations (3.14) and (3.15) to derive the forward kinematic equations as

(3.16)

with given by Equation (3.14) and given by Equation (3.15). Therefore, the forward kinematic equations of this manipulator are given by

(3.17)

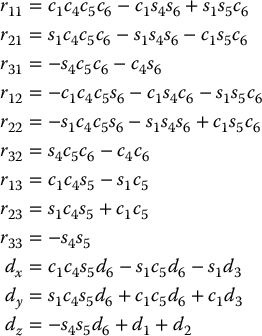

in which

Notice how most of the complexity of the forward kinematics for this manipulator results from the orientation of the end effector while the expression for the arm position from Equation (3.14) is fairly simple. The spherical wrist assumption not only simplifies the derivation of the forward kinematics here, but will also greatly simplify the inverse kinematics problem in Chapter 5.

A free body diagram shows the cylindrical robot with spherical wrist. — **Figure 3.9** Cylindrical robot with spherical wrist.

3.3.5 Stanford Manipulator

Consider now the Stanford Manipulator shown in Figure 3.10. This manipulator is an example of a spherical (RRP) manipulator with a spherical wrist. This manipulator has an offset in the shoulder joint that slightly complicates both the forward and inverse kinematics problems.

A free body diagram shows the DH coordinate frame assignment for the Stanford manipulator. — **Figure 3.10** DH coordinate frame assignment for the Stanford manipulator.

We first establish the joint coordinate frames using the DH convention. The DH parameters are shown in Table 3.4.

Table 3.4 DH parameters for the Stanford Manipulator. θ_i, i = 1, 2, 4, 5, 6 and d₃ are variable.

Link	d_i	a_i	α_i	θ_i
1	0	0	− 90	θ₁
2	d₂	0	+ 90	θ₂
3	d₃	0	0	0
4	0	0	− 90	θ₄
5	0	0	+ 90	θ₅
6	d₆	0	0	θ₆

It is straightforward to compute the matrices A_i as

(3.18)

(3.19)

(3.20)

is then given as

(3.21)

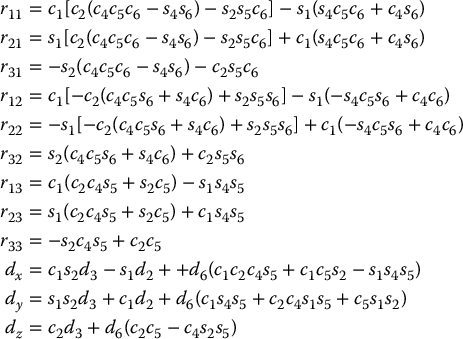

in which

3.3.6 SCARA Manipulator

As another example of the general procedure, consider the SCARA manipulator of Figure 3.11. This manipulator consists of an RRP arm and a one degree-of-freedom wrist, whose motion is a roll about the vertical axis. The first step is to locate and label the joint axes as shown. Since all joint axes are parallel, we have some freedom in the placement of the origins. The origins are placed as shown for convenience. We establish the x₀ axis in the plane of the page as shown. This choice is completely arbitrary, but it does determine the home position of the manipulator, which is defined relative to the zero configuration of the manipulator, that is, the position of the manipulator when the joint variables are equal to zero. The DH parameters are given in Table 3.5 and the A matrices are as follows.

A free body diagram shows the DH coordinate frame assignment for the SCARA manipulator. — **Figure 3.11** DH coordinate frame assignment for the SCARA manipulator.

Table 3.5 DH parameters for the SCARA manipulator. θ₁, i = 1, 2, 4 and d₃ are variable.

Link	a_i	α_i	d_i	θ_i
1	a₁	0	0	θ₁
2	a₂	180	0	θ₂
3	0	0	d₃	0
4	0	0	d₄	θ₄

(3.22)

(3.23)

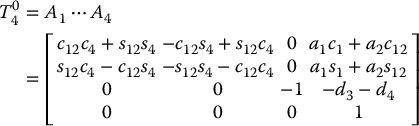

The forward kinematic equations are therefore given by

(3.24)

3.4 Chapter Summary

In this chapter we studied the relationships between joint variables q_i and the position and orientation of the end effector for a general serial-link manipulator. We began by introducing the Denavit–Hartenberg convention for assigning coordinate frames to the links of a serial manipulator. Using the DH convention, four parameters are associated to each link of the robot, namely, the link length, link twist, link offset, and joint angle. Once a table of DH parameters is generated, the forward kinematic equations are computed as a product of homogeneous transformations that relate successive DH coordinate frames. We also discussed the kinematics of the spherical wrist and showed that the wrist joint variables can be identified with a set of Euler angles relating end-effector frame and a frame attached to the wrist center, i.e., the point where the spherical wrist joint axes intersect.

Problems

Consider the three-link planar manipulator shown in Figure 3.12. Derive the forward kinematic equations using the DH convention.
Consider the two-link Cartesian manipulator of Figure 3.13. Derive the forward kinematic equations using the DH convention.
Consider the two-link manipulator of Figure 3.14, which has joint 1 revolute and joint 2 prismatic. Derive the forward kinematic equations using the DH convention.
Consider the three-link planar manipulator of Figure 3.15. Derive the forward kinematic equations using the DH convention.
Consider the three-link articulated robot of Figure 3.16. Derive the forward kinematic equations using the DH convention.
Consider the three-link Cartesian manipulator of Figure 3.17. Derive the forward kinematic equations using the DH convention.
Attach a spherical wrist to the three-link articulated manipulator of Problem 3–5 as shown in Figure 3.18. Derive the forward kinematic equations for this manipulator.
Attach a spherical wrist to the three-link Cartesian manipulator of Problem 3–6 as shown in Figure 3.19. Derive the forward kinematic equations for this manipulator.
Consider the PUMA 260 manipulator shown in Figure 3.20. Derive the complete set of forward kinematic equations by establishing appropriate DH coordinate frames, constructing a table of DH parameters, forming the A matrices, etc.

A free body diagram shows the three-link planar manipulator. — **Figure 3.12** Three-link planar arm of Problem 3–1.

A free body diagram shows the two-link Cartesian manipulator. — **Figure 3.13** Two-link Cartesian robot of Problem 3–2.

A free body diagram shows the three-link planar arm with prismatic joint. — **Figure 3.15** Three-link planar arm with prismatic joint of Problem 3–4.

A free body diagram shows the three-link articulated robot. — **Figure 3.16** Three-link articulated robot.

A free body diagram shows the three-link Cartesian manipulator. — **Figure 3.17** Three-link Cartesian robot.

A free body diagram shows the three-link articulated manipulator with a spherical wrist. — **Figure 3.18** Elbow manipulator with spherical wrist.

A free body diagram shows the three-link Cartesian manipulator with a spherical wrist. — **Figure 3.19** Cartesian manipulator with spherical wrist.

A free body diagram shows the PUMA 260 manipulator. — **Figure 3.20** PUMA 260 manipulator.

Notes and References

The Denavit–Hartenberg convention for assigning coordinate frames was first described in [35] and [70]. Since then, many articles and books have been written on the topics of kinematics of robots and general mechanisms, including [25], [37], [135], [16], and [181].

An alternative method to the DH convention to derive the forward kinematics of robots is based on the so-called product of exponentials. [118, 105] This method uses the fact that any rigid body motion (rotation and translation) may be represented as a so-called screw motion, which is a rotation about a fixed axis in space using the exponential coordinates defined in Chapter 2. Homogeneous transformations are then given as (matrix) exponentials. The reader may consult these texts for details.
